Model

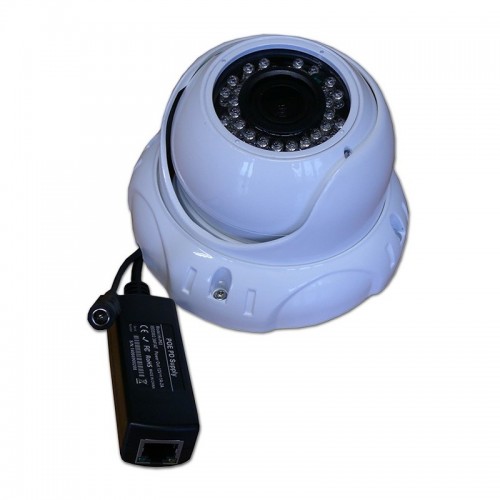

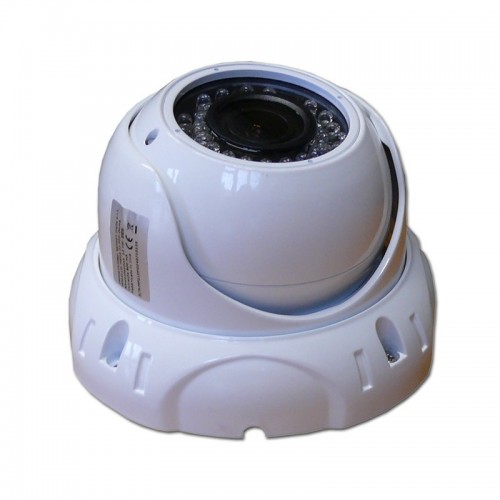

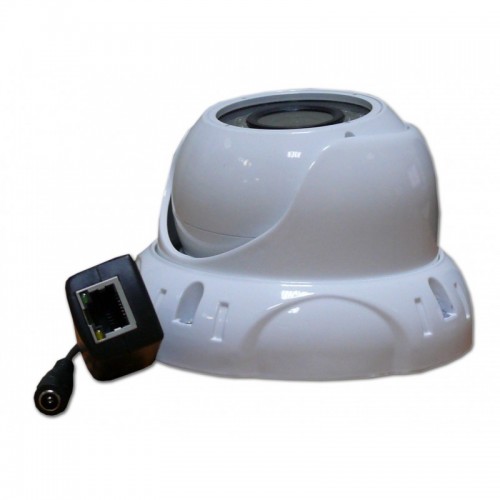

MEGA 21 POE Dome

Solution

IMX222 + DM368

System Structure

Embedded LINUX RTOS ,dual core 32 bits DSP (TI Davinci DM368),
Puo'e hardware compression, watchdog,128M FLASH,128M DDR2;

Image Sensor

1/3" SONY 2.4 Megapixel High-resolution CMOS Sensor -TI Davinci DM368

Resolution

1920x1080

Minimum Illumination

1Lux-sec

S/N Ratio

>50dB

Focus Mode

Manual Focus

Day/Night

IR cut filter with auto switch, IR sensor.

Network

1 RJ45 Ethernet interface, 10/100M adaptation

Led Controller

1 IR lamp control interface , algorithm control IR lamp open and close

Photoresistance

Support linkage between photoresistance inPuo' sign, image, IR-Cut and IR lamp.

Lens

2.8-12mm Manual Zoom Lens

Delay

Within The LAN 0.3S

Frame Rate

2.0 Megapixel@25FPS

Video Compression

H.264 /JPEG

Protocol

Protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/TCP/SMTP

Onvif

Support Onvif 2.0

User Permission

Multi-user Classification Management

Power

DC 12V/1A - Poe 48V

Recording Mode

NVR Local/Recording

Consumption

3.0W

Temperature

-10?55?

Humidity

0%-90%RH,Without Condensation

Weight

Dimension

Dimension Box

1850g

140 x 80 mm (distanza fori 125mm)

140 x 140 x 115 mm

Main Features

/

* Superior low-light performance both in VGA mode and HD mode,Support ABLC;

* Support WEB Configuration,IE Surveillance;
* Support Dual Stream;
* Support OSD,Chroma,Brightness,Saturation,Electric Zoom Configuration;
* Support real-time transmission,Center warning and picture pop-up linkage supported ( after motion detection and IO alarm);
* Support DDNS,UPNP remote control;Support Onvif 2.0;Support IR-Cut Switch,Sensible infrared;
